UDHOME2 BN
Product details
Product description
Product name
Floor socket unequipped, with brush outlet , 140x140x110 , UDHOME2 BN
GTIN
4012197366773
Item description, complete

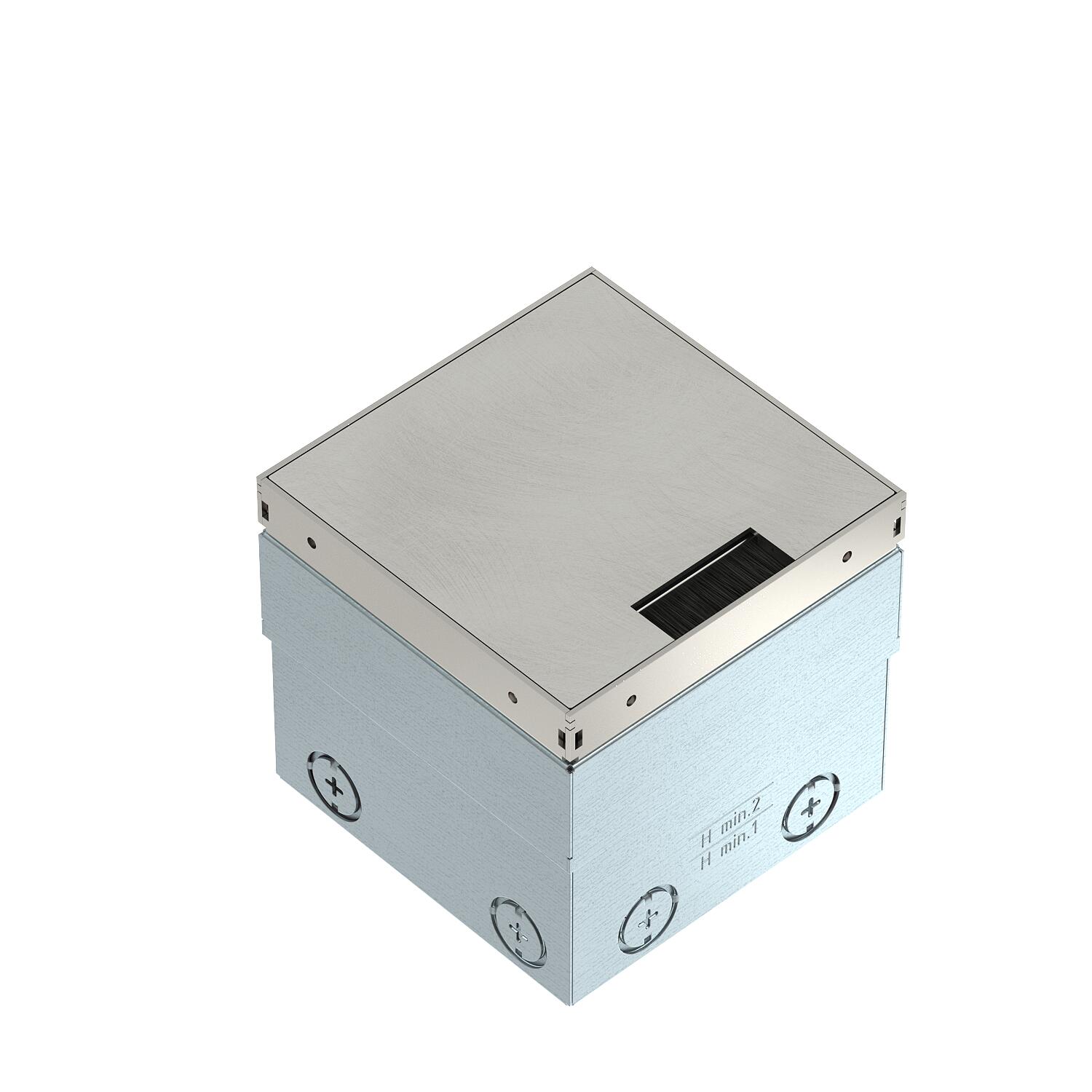

Square floor socket for use in dry-care cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 100 mm, the height-adjustment range 35 mm. Frame and cover made of stainless steel and visible in the floor covering. Cover with decorative plate and brush bar for cable routing. Empty housing for up to 2 Modul 45® devices in the mounting support and 2 data sockets in the optional data technology support.
Manufacturer
OBO Bettermann
Type
UDHOME2 BN
Technical data
Colour
USER_FILLED_VALUE
Material
Stainless steel Bright, treated
Width (mm)
140
Dimension
140x140x110
Weight
2,2
Height (mm)
100
Length (mm)
140
Classifications
ETIM group
EG000005
ETIM class
EC000024
Other data
Tender text
Floor socket Make: OBO BETTERMANN Type: UDHOME2 BN Item no.: 7368352 Unit:
